WY-100V

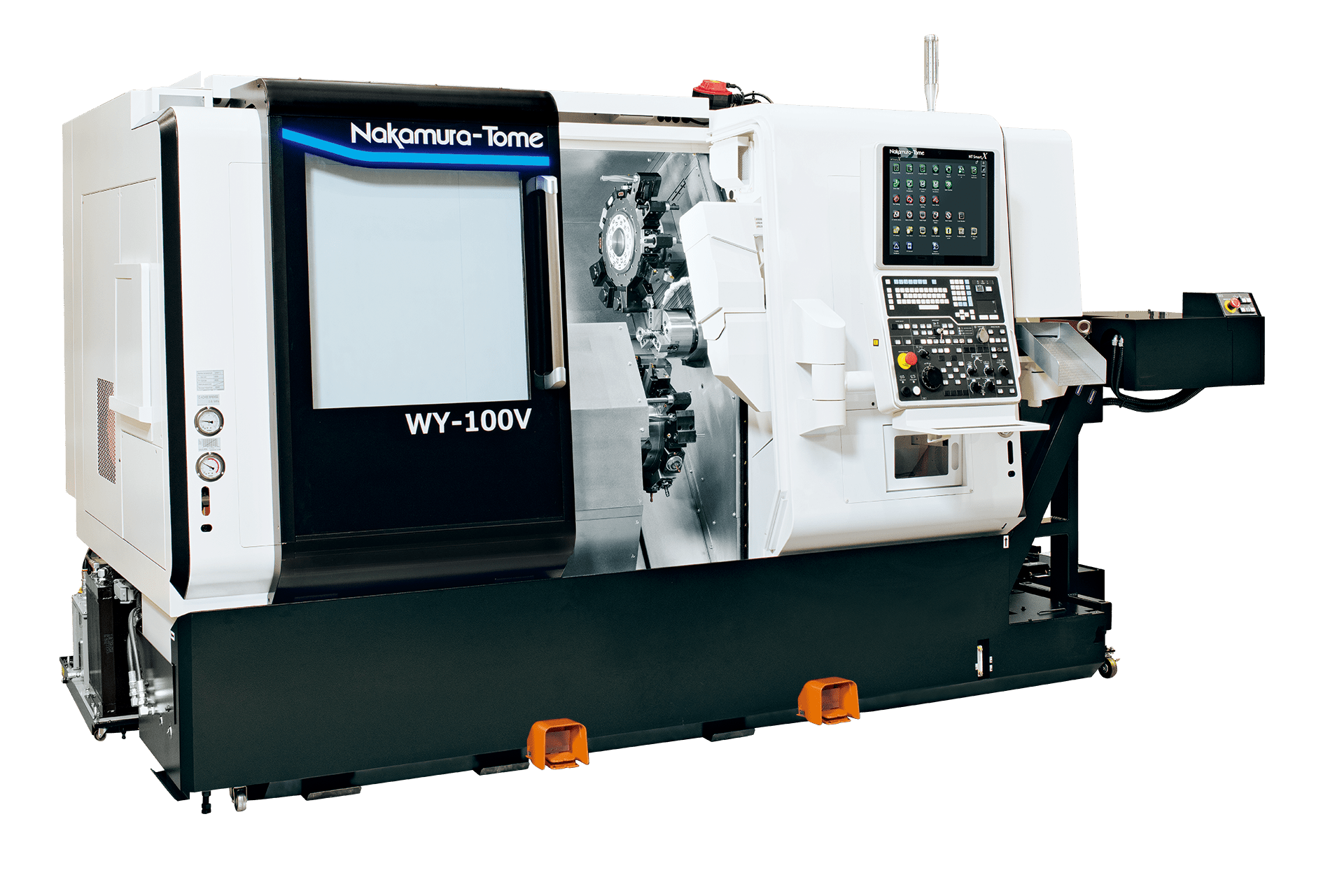

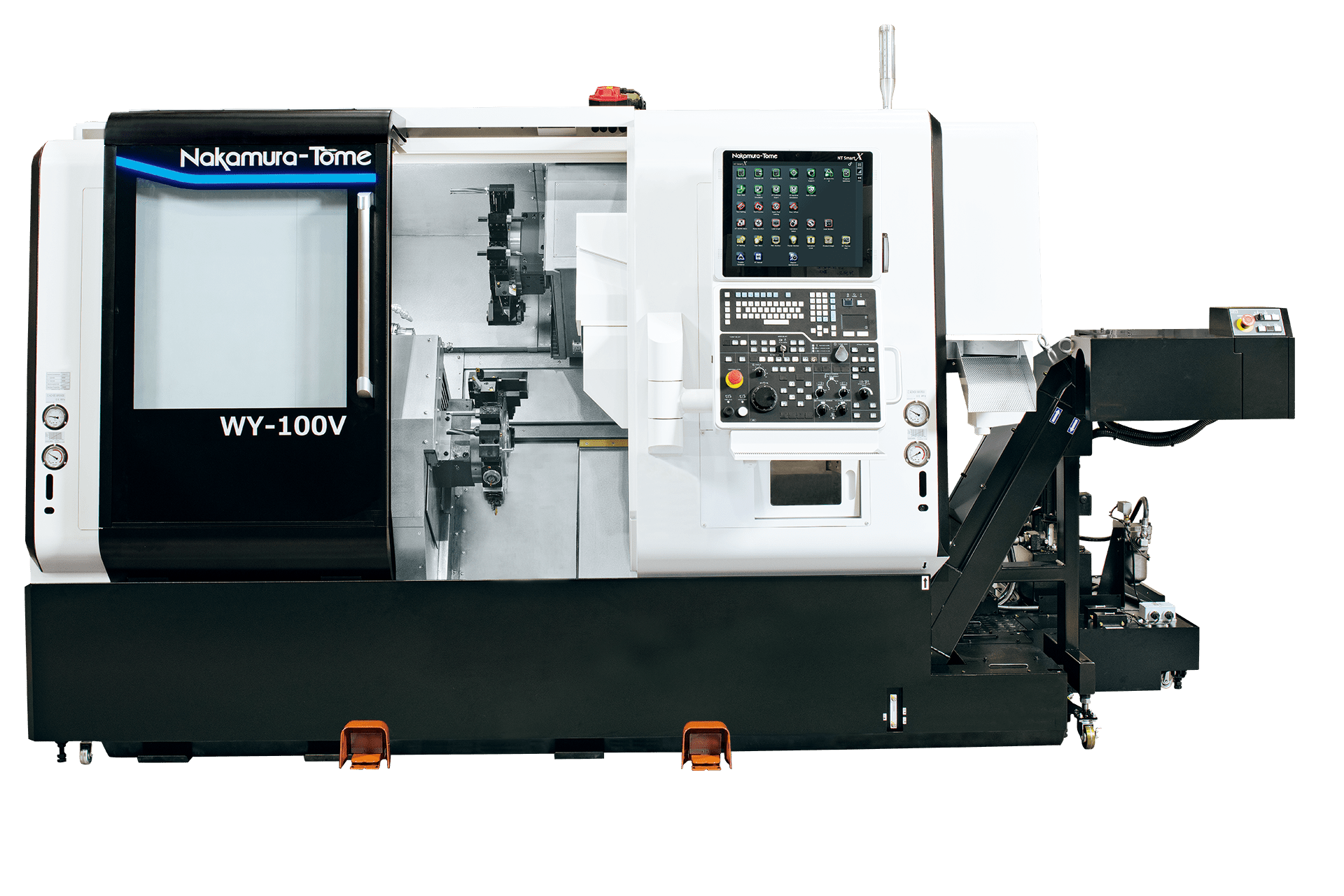

The WY-100VÂ from Nakamura-Tome is a twin spindle multi-tasking machine with two turrets, upper and lower, both with Y-axis.
With this configuration, the opportunity exists to drastically reduce cycle times by offering highly capable features like pinch milling, drilling and turning, as well as the unique ChronoCut setting, designed by Nakamura-Tome, to further reduce idle time during manufacturing without compromising accuracy—even without any changes to the cutting conditions.

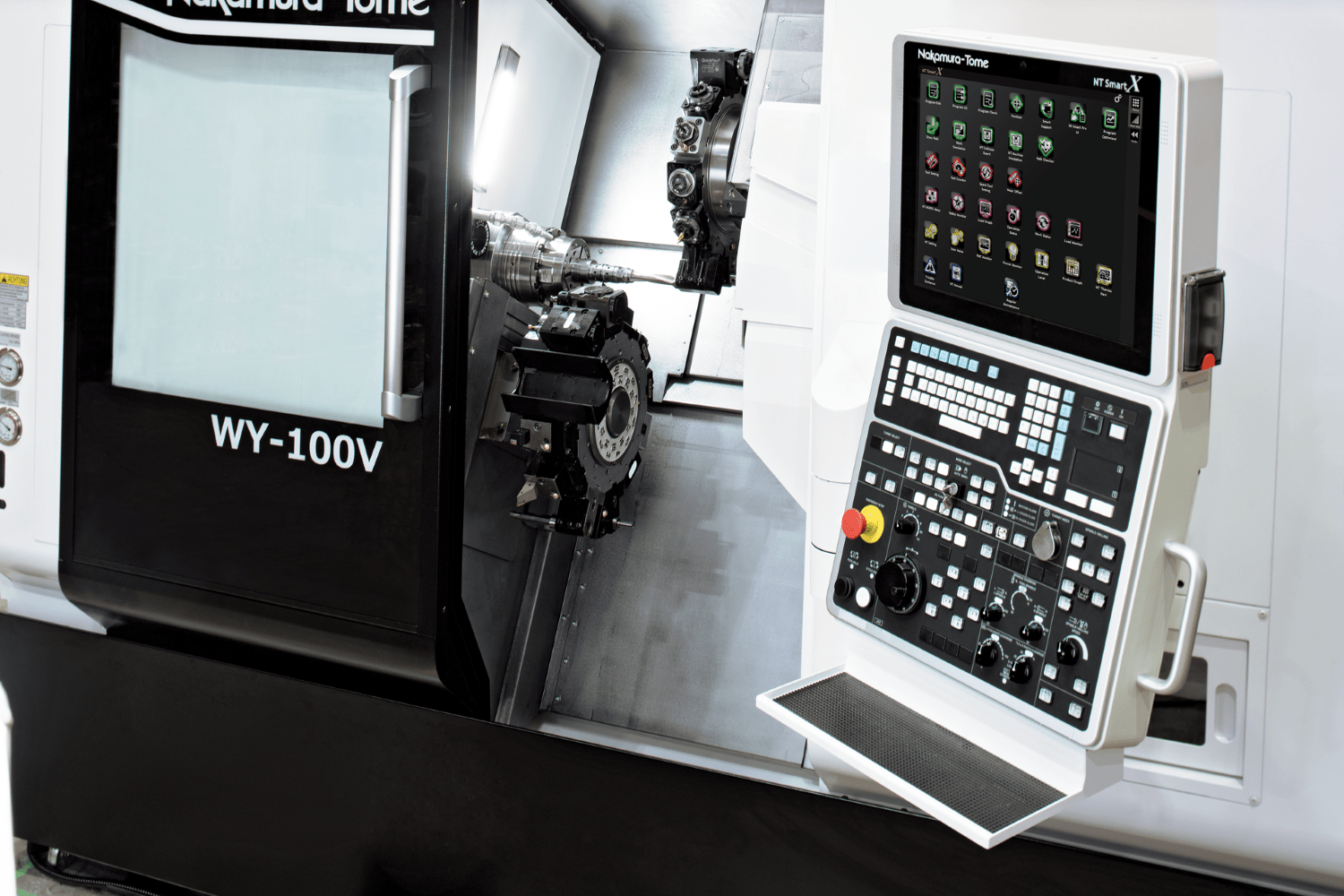

The WY-100V features the 19-inch, color, LCD touchscreen NT SmartX control with a 8 GB of PC memory and voice guidance.
-
30% Reduction in Cycle Time with ChronoCut
-
Twin Spindle — 2 Turret Configuration
-
+/- 1.65 Y-Axis Travel on Upper Turret
-
+/- 1.22 Y-Axis Travel on Lower Turret
-
10,000 RPM / 10 HP Milling Turrets
-
12 / 24 Station Milling Turrets (x2)
-
2-inch Bar Capacity
-
Detachable Tool Setter (Standard)
-
Remnant Ejector: 2-inch (D) x 6-inch (L) x 6.6 lbs
-
Parts Catcher G: 2-inch (D) x 6-inch (L) x 6.6 lbs
-
Oscillation Turning Function (Standard)
Machine Capacity
| Max Turning Length | 23.2 in. (588 mm) |
|---|---|
| Bar Capacity L-Spindle | 2.0 in. (51 mm) |
| Bar Capacity R-Spindle | 1.7 in. (42 mm) |
| Chuck Size | 6 in. |
Axis Travel
| Slide Travel (B) | 24.5 in. (620 mm) |
|---|---|
| Rapid Feed (B) | 1575 in./min. (40 m. / min.) |
| Slide Travel (X1/X2) | 5.9 in (150 mm) |
| Slide Travel (Z1/Z2) | 23.2 in. (588 mm) |
| Slide Travel (Y1/Y2) | +/- 1.6 in. (42 mm) |
| Rapid Feed (X1/X2) | 787.4 in/min. (20 m./ min.) |
| Rapid Feed (Z1/Z2) | 1574 in/min. (40 m./ min.) |
| Rapid Feed (Y1/Y2) | 314.9 in. / min. (8 m./min.) |
Left Spindle
| Spindle Speed | 6000 rpm |
|---|---|
| Spindle Speed Range | Stepless |
| Spindle Nose | A 2-5 |
| Hole Through Draw Tube | 2.04 in. (52 mm) |
Right Spindle
| Spindle Speed | 6000 rpm |
|---|---|
| Spindle Speed Range | Stepless |
| Spindle Nose | A 2-5 |
| Hole Through Draw Tube | 1.7 in. (43 mm) |
C-Axis
| Least Input Increment | 0.001° |
|---|
Turret
| Number of Tool Stations | 24 |
|---|---|
| Number of Indexing Positions | 24 |
Rotating Tool
| Rotary System | Individual rotation |
|---|---|
| Spindle Speed | 10,000 rpm |
| Spindle Speed Range | Stepless |
| Number of Rotation Tool Station | 12 x 2 |
Drive Motor Power
| Main Spindle | 15 HP |
|---|---|
| Right Spindle | 15 HP |
| Driven Tool Spindle | 9.5/3 HP |
General
| Machine Weight (Standard) | 20,943 lbs. (9500 kg.) |
|---|---|
| Max. Height of Movable Part | 86.5 in. (2119.4 mm) |
| Floor Space (W) x (D) | 151 in. (3849.1 mm) x 88.4 in. (2245.7 mm) |
| Machine Height | 88.8 in. (2255.3 mm) |
-
FMB 5-50 Barfeeder
-
WTO Live Tools
-
Royal QG-52 collet chucks
