Triple H40 3-Axis

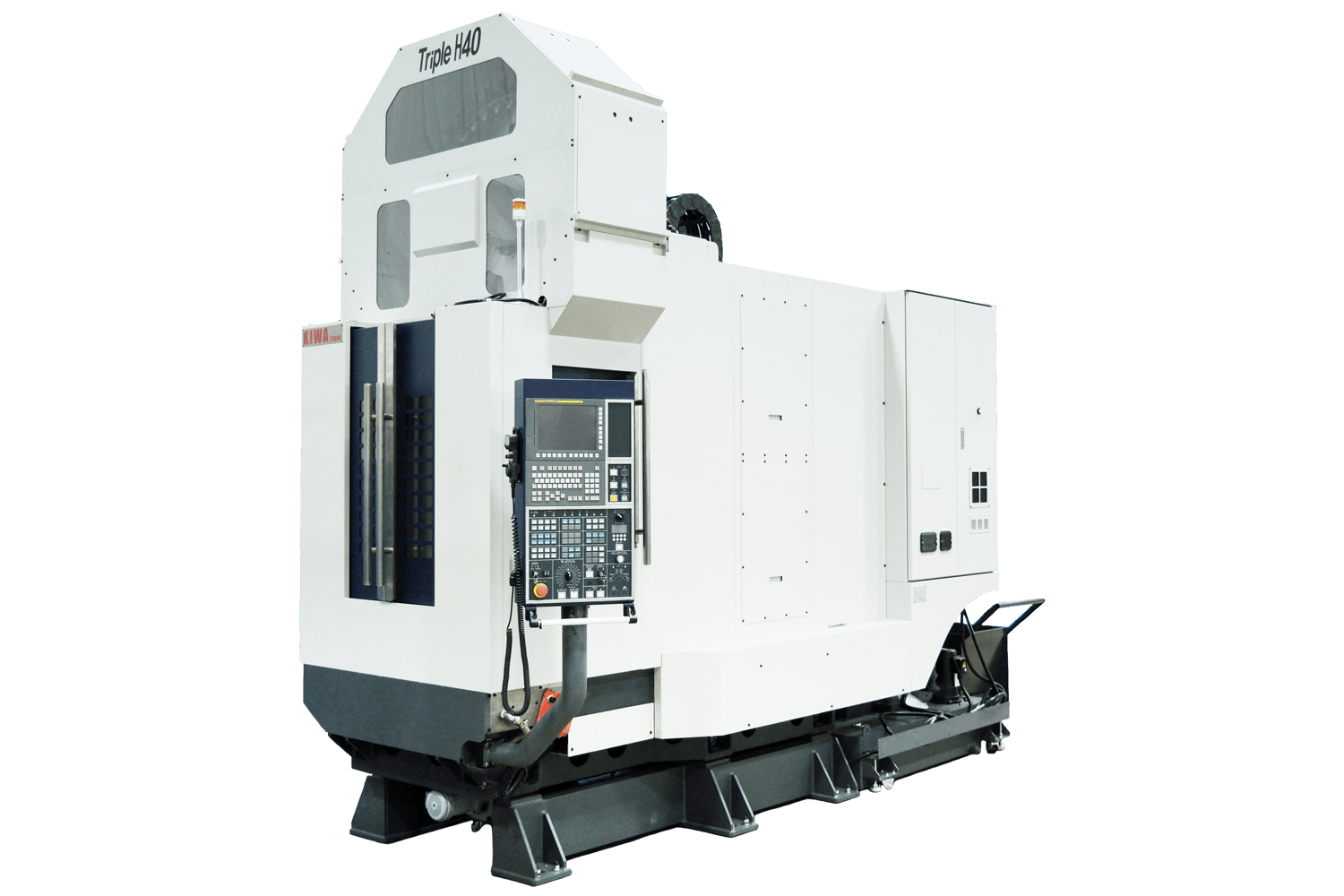

KIWA Triple H40 series, is a high-performance horizontal machining center with a Column Traverse Design. This allows for heavy parts to be machined in a compact space. The machine design will accommodate a variety of workpieces and factory automation equipment. The machine is equipped with a wide center trough in the machining area and a chip auger to carry chips directly down the center trough for disposal at the rear of the machine.
-
(4) Simultaneously controlled axes (4+1)
-
Provision for coolant through spindle
-
Overhead Coolant chip flow system
-
Spindle oil cooler
-
Chip Auger and Chip conveyor std
-
Tool life management
-
AICC1
-
1280 meter / 512 kB memory
-
Helical interpolation
-
200 tool off sets
-
Macro programming
Travel
| X-Axis Travel | 20.1 (510) in (mm) |
|---|---|
| Y-Axis Travel | 20.1 (510) in (mm) |
| Z-Axis Travel | 15.7 (400) in (mm) |
Pallet
| Pallet Surface to Spindle Center | 12.2 – 32.3 (310-820) in (mm) |
|---|---|
| Pallet Center to Spindle Nose | 2.8 -18.5 (70-470) in (mm) |
| Pallet Load Capacity | 2,200 (1000) lbs (kg) |
| Max. Workpiece Size | 32.3 x 17.7 (820 x 450) in (mm) |
Feed Rate
| X-Axis Rapid Traverse | 2362 (60) in (m) |
|---|---|
| Y-Axis Rapid Traverse | 2362 (60) in (m) |
| Z-Axis Rapid Traverse | 2362 (60) in (m) |
| Cutting Feed (X/Y/Z) | 1,181 (30) in (m) |
Spindle
| Spindle Power | 20 HP |
|---|---|
| Spindle Speed | 12000 rpm (opt) |
| Spindle Taper | Cat 40 |
Tools
| Standard Number of Tools | 40 std (opt) |
|---|---|
| Maximum Tool Weight | 17.6 (8) lbs (kg) |
| Maximum Tool Length | 11.8 (300) in (mm) |
| Maximum Tool Diameter | 3.5 (90) in (mm) |
| Maximum Tool Diameter- No Adjacent Tool | 7.1 (180) in (mm) |
| Tool Changing Time- Tool to Tool | 4.5 sec |
General
| Coolant Tank Capacity | 119 (450) gal (L) |
|---|---|
| Machine Weight | 12,600 (5,700) lbs (kg) |
| Machine Control | 0iMF |
