Nakamura-Tome
SC-100×2

The SC-100×2 is a twin-turret multitasking machine that utilizes two tools on either side of the upper turret for superimposed machining, making it a logical solution for Swiss-style parts greater than 25 millimeters in diameter.

“There are a ton of ways to machine complex parts on the SC-100X2, but at the end of the day the math is remarkably simple: the more tools in the cut, the less time it takes to complete a job,” said Sergio Tondato, Methods’ Sr. Director, Nakamura-Tome Product Line. “No matter what type of job you put on this machine, the results are the same: lower costs per piece.”

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Massive Box-way Slides on all Axes

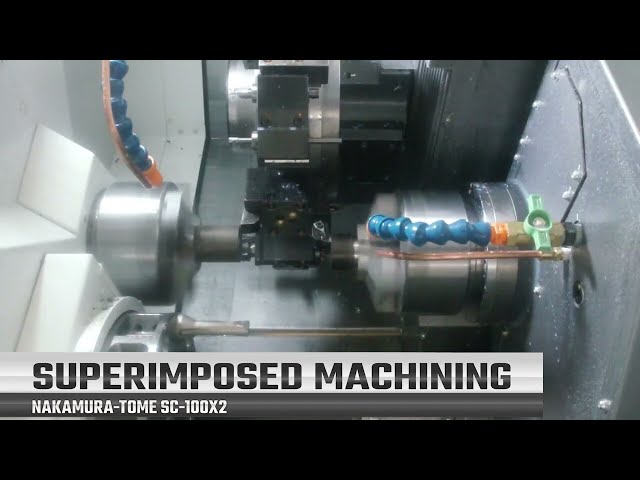

  • Superimposed Machining
  • Oscillating Cutting
  • 11/7.5 HP Spindle Motor
  • Spindle Speed 6,000 min-1
  • Faster Rapid Traverse 20 m/min for the X-axis, and 36 m/min for the Z-axis
  • Bar Capacity 52mm / 2” Standard
  • All FANUC, CNC Control and Servo Drives.
  • Dodecagonal 12 Station Turret

Technical Data

Capacity
! in (mm)
Max Turning Diameter
7.7" (195 mm)
Max Turning Length
15.7" (400 mm)
Bar Capacity
2" (52 mm)
Chuck size
6" (152 mm)

Axis Travel

Slide travel (X)
5.9" (150 mm)
Slide travel (Z)
15.7" (400 mm)
Slide travel (Y)
±1.6 (40 mm)
Rapid feed (X)
787 in/min (20 m/min)
Rapid feed (Z)
1418 in/min (36 m/min)
Rapid feed (Y)
236 in/min (6 m/min)

Main Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
(52 mm)

Sub Spindle (op.)

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.2" (56 mm)

C-Axis

Least Input Increment
0.001°

Upper Turret

Number of Tool Stations
12
Number of Indexing Positions
24

Lower Turret

Number of Tool Stations
9
Number of Indexing Positions
9

Milling Tools

Spindle Speed
6000 rpm
Number of Milling-Tool Stations
12

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12

Drive motor power

Main Spindle
11 HP
Sub Spindle (op.)
7.5 HP

General

Floor Space ( L x W x H)
121" × 78" x 71" (3,072mm × 1,974mm x 1,799mm)
Machine Weight
14,330 (6,500 kg)
