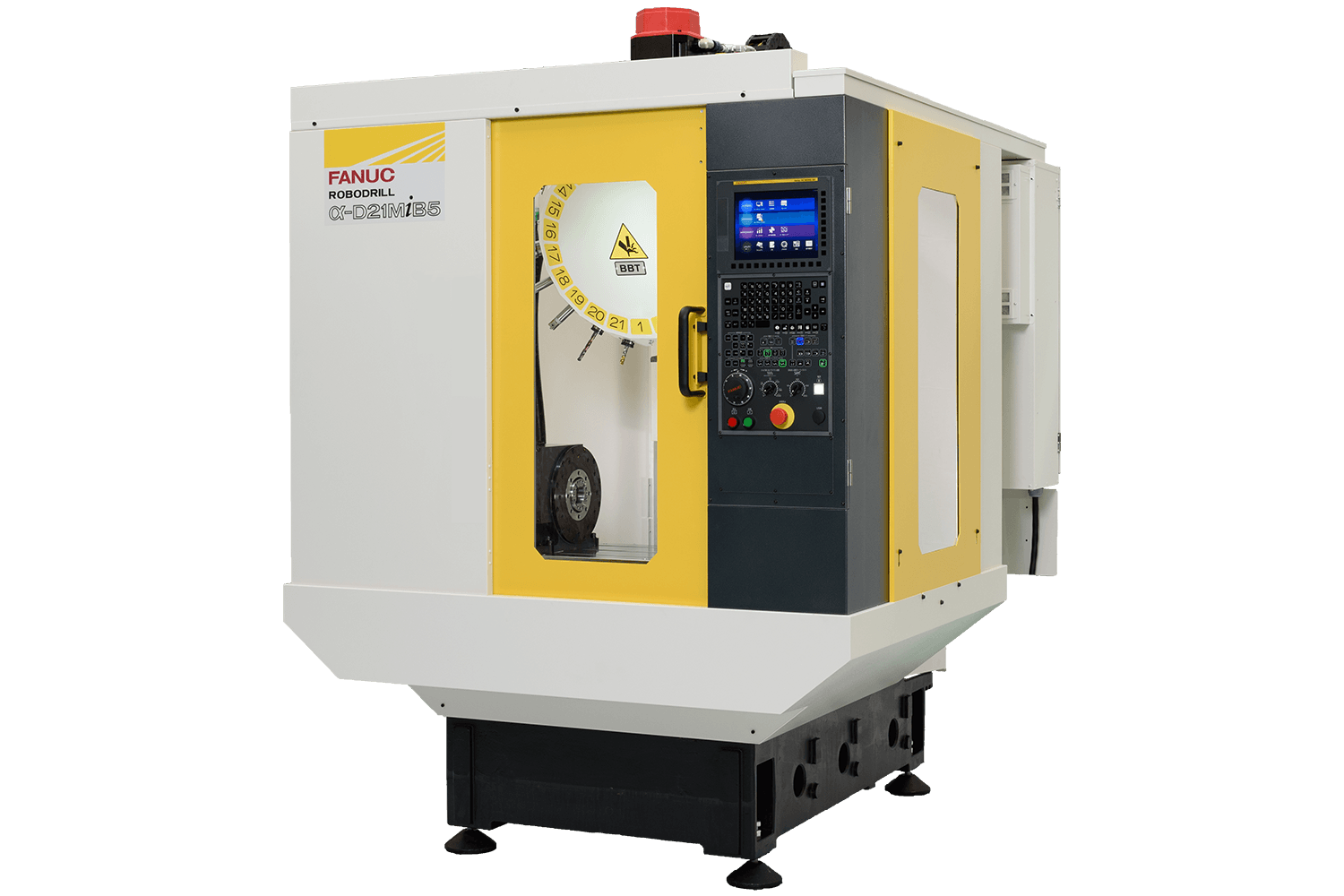

FANUC ROBODRILL CNC Machining Medium Bed RD Series
The FANUC RoboDrill is a high-performance machining center, known worldwide as the most reliable machine manufactured today.
RoboDrills make quick work out of any milling, drilling or tapping jobs. Reliability has also been addressed in all areas of the machine design. Coupled with the latest FANUC 31i-B PLUS control, the RoboDrill is the preferred machine in any manufacturing facility, large or small.
All RoboDrills are part of our RTS program, which gives you the choice to receive your RoboDrill when it fits your schedule.
Whether in 5 days or any time after, your RoboDrill will be ready when you are. Guaranteed.
Product Details
Features & Benefits
- Compact Design
- FANUC 31i-B Nano CNC System
- Ultra Precise 32,000,000 Pulse/Rev Encoders
- Ai Contour Control I
- Thermal Growth Compensation
- 1.6 sec Chip to Chip
- 1.5G Accel/Decel
- Helical Interpolation Program Storage
- Rigid Tapping 5,000
- Thread Milling
- High Speed Reverse Tapping
- “Quick” Tap Recovery System
- Simultaneous ATC / Table Positioning
- Easy to Automate with Methods
- 100% Built in Japan
Technical Data
Travel
- X-Axis Travel
- 19.7" (500 mm)
- Y-Axis Travel
- 15.7" (400 mm)
- Z-Axis Travel
- 13" (330 mm)
- Spindle to Table
- 18.9" (480 mm)
Table Size
- Table Size
- 25.6" x 15.7" (650 mm x 400 mm)
- Table Capacity
- 660 lbs (300 kg)
Weight
- Machine Weight
- 4,400 lbs (1,996 kg)
Turret Style ATC Specifications
- Tool to Tool Change Time
- 0.9 sec
- Chip to Chip Change Time
- 1.6 sec
- Max Tool Length
- 9.8" (249 mm)
- Max Tool Diameter
- 3.14" (80 mm)
SPECIFICATIONS SiA5, MiA5, & LiA5
Spindles
- Spindle Taper
- BT-30
- Spindle Speed
- 10000 rpm
- 10000 rpm
- 18.7* / 7.5** HP
Feedrate
- X-Axis Rapid Traverse
- 2125 (54) in/min (m/min)
- Y-Axis Rapid Traverse
- 2125 (54) in/min (m/min)
- Z-Axis Rapid Traverse
- 2125 (54) in/min (m/min)
ATC
- ATC Type
- Turret Type
- ATC Turret Capacity
- 14 / 21 tool
- Tool to Tool Change Time
- 0.9 sec
- Chip to Chip Change Time with Table Motion
- 1.6 sec
- Control
- Fanuc 31i-B (31i-B5 on 21 tool)
- Maximum Programming Memory
- Up to 2gb optional
- Total Simultaneous Axis
- up to 4-axis (14 tool) / up to 5-axis (21 tool)
* 1 min rating
** Continuous
