NTY3-250

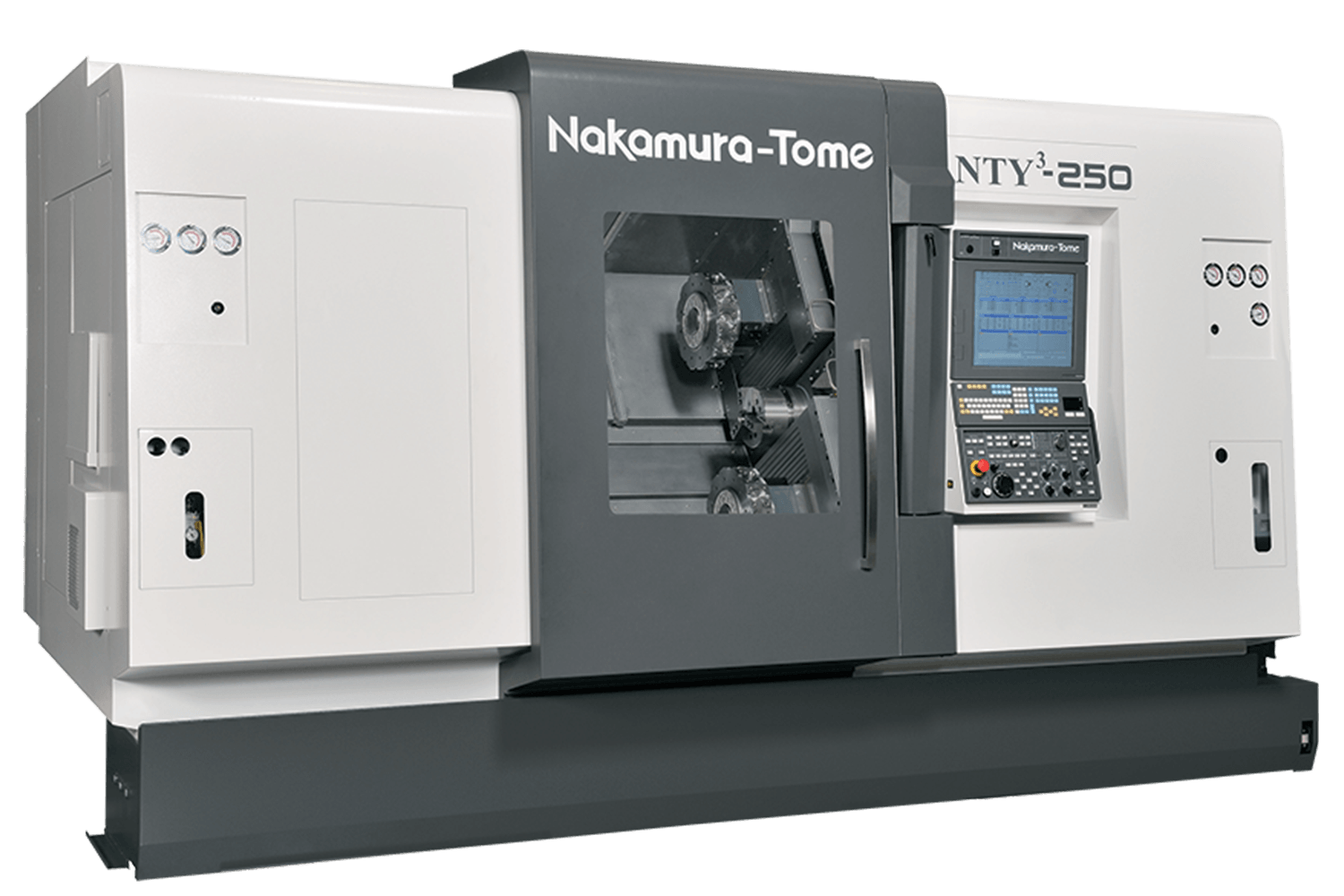

Nakamura-Tome’s latest multitasking platform, the NTY³-250 is the most productive 3-turret machine available for today’s high-precision manufacturers.
The NTY3-250’s large distance between spindle faces at 47.2″ allows for no interference issue to have multiple tools in the cut simultaneously, helping you optimize cycle time reduction with ease.
The new 19″ LCD SmartX control makes the operator interface more user-friendly, with 30% fewer buttons and switches.
-
Opposing Two-Spindle, 3-Turret Construction
-
72 Tool Stations
-
36 Driven-Tool Stations
-
4.4 in. Y-Axis on 3-Turret
-
6,000 min-1 Driven-Tool Speed (on all 3 turrets)
-
30/25 HP Left Spindle Motor
-
25/20 HP Right Spindle Motor
-
7.5 HP x3 Driven-tool Motor (Upper / Lower)
-
3 in. Bar Capacity
| Max Turning Diameter | 8.9 in (225 mm) |
|---|---|
| Max Turning Length | 12.3 (310.5) / 35.7 (905.5) in (mm) |
| Bar Capacity | 3.15 in (80 mm) |
| Bar Capacity L-Spindle | 3.1 in (80 mm) |
| Bar Capacity R-Spindle | 2.5 in ( 65) in (mm) |
| Chuck size | 8 (210) / 6 (165) in (mm) |
Axis Travel
| Slide travel (Y) | -2.4 (61), +2 (51) / -2.4 (61), +2 (51) / -2 (51), +2.4 (61) in (mm) |
|---|---|
| Rapid feed (B) | 1575 (40) in/min (m/min) |
| Slide Travel (B2-axis) | 37.2 (945) in (mm) |
| Slide Travel (X1/X2/X3) | 6.3 (160.5) / 6.3 (160.5) / 6.5 (165) in (mm) |
| Slide Travel (Z1/Z2/Z3) | 14 (355) / 14 (355) / 35.9 (910) in (mm) |
| Rapid Feed (X1, X2, X3) | 1181 (30) in/min (m/min) |
| Rapid Feed (Z1, Z2, Z3) | 1575 (40) in/min (m/min) |
| Rapid Feed (Y1, Y2, Y3) | 551 (14) in/min (m/min) |
Left Spindle
| Spindle Speed | 4000 rpm |
|---|---|
| Spindle Speed Range | Stepless |
| Spindle Nose | A2-6 |
| Hole Through Draw Tube | 3.1 ( 80 ) in (mm) |
Right Spindle
| Spindle Speed | 4500 rpm |
|---|---|
| Spindle Speed Range | Stepless |
| Spindle Nose | A2-6 |
| Hole Through Draw Tube | 2.5 ( 65) in (mm) |
C-Axis
| Least Input Increment | 1E-3 degree |
|---|
Turret
| Number of Tool Stations | 12 |
|---|---|
| Number of Indexing Positions | 24 |
Rotating Tool
| Rotary System | Individual rotation |
|---|---|
| Spindle Speed | 6000 rpm |
| Spindle Speed Range | Stepless |
| Number of Rotation Tool Station | 12×3 |
Drive motor power
| Main Spindle | 30 HP |
|---|---|
| Right Spindle | 25 |
| Driven Tool Spindle | 7.5 HP |
General
| Machine Weight | 31802 (14425) lbs (kg) |
|---|
