Nakamura-Tome

NTJ-100

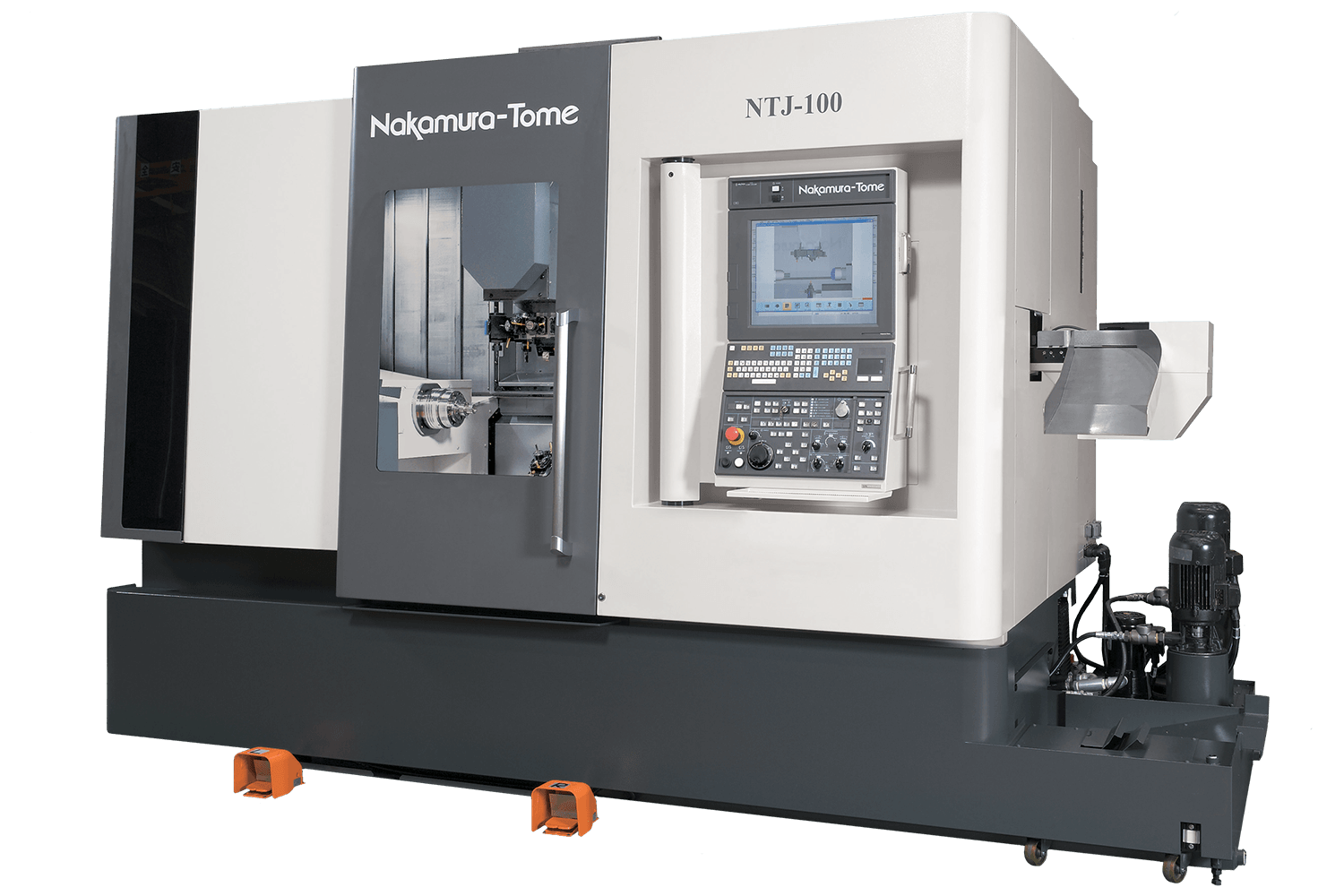

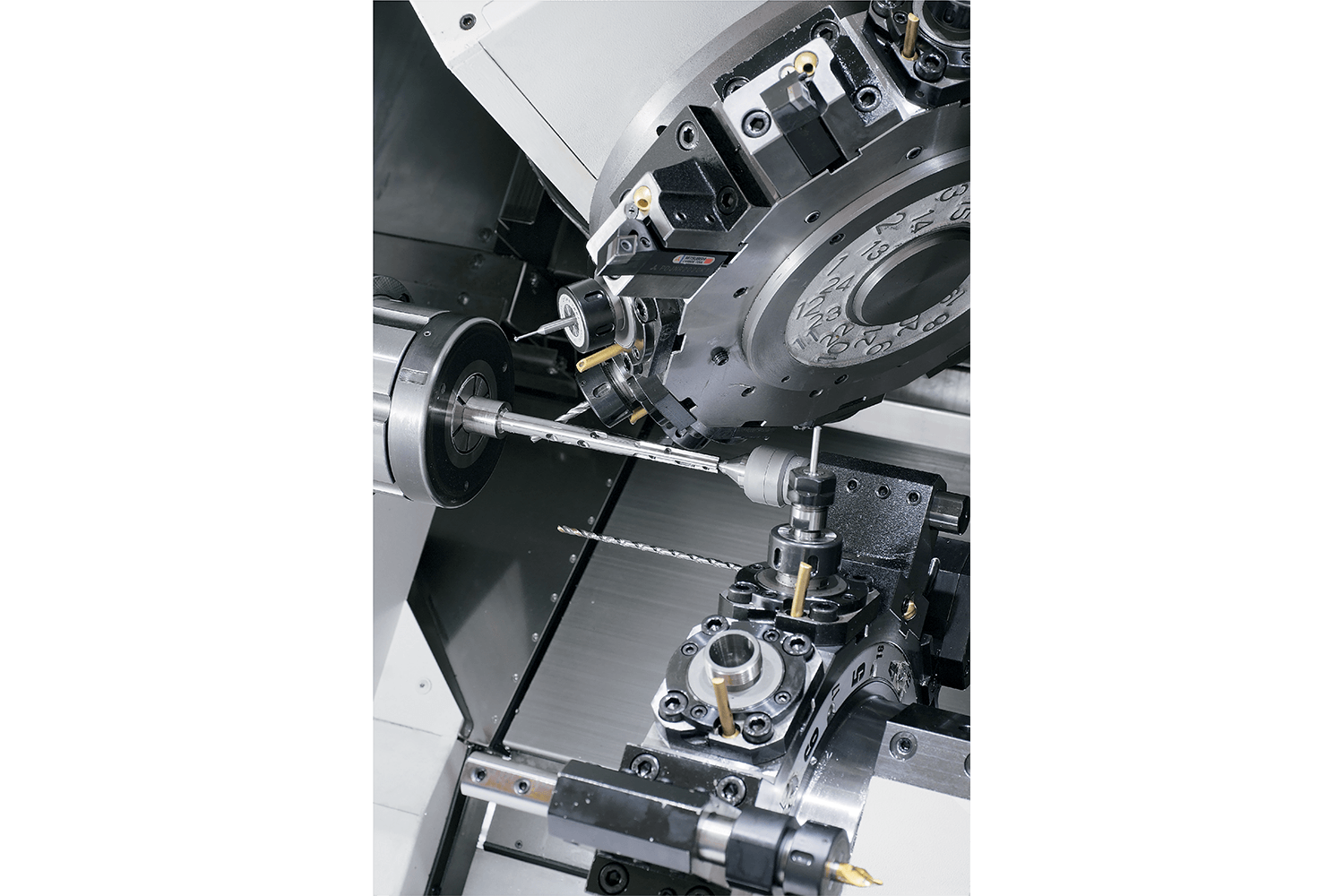

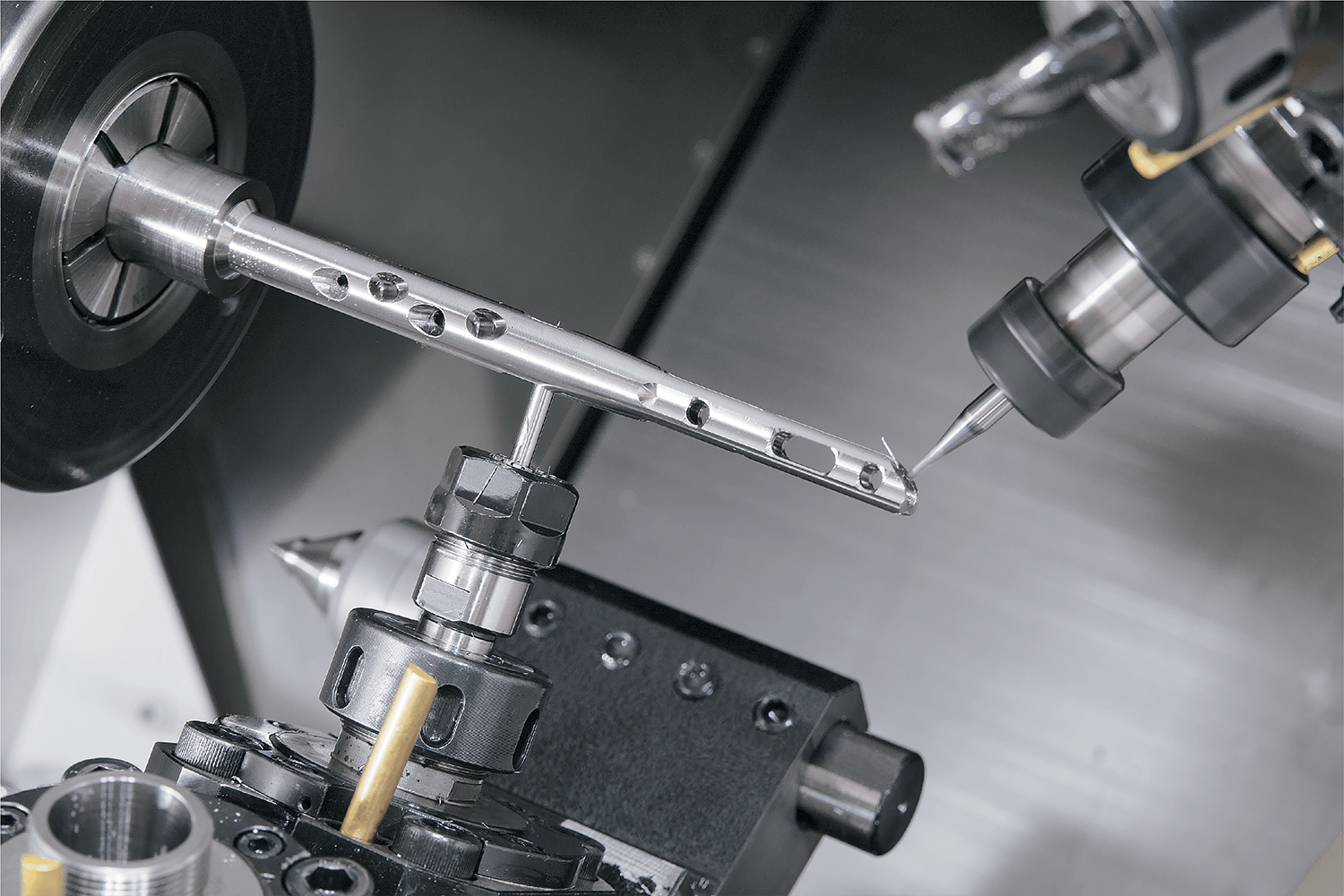

The NTJ-100 is very unique with an upper turret having a B axis of 182 degree swing. Both Upper and Lower turrets have a Y axis. The machine has a 54 tool capacity. You can do profile milling with the upper turret.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

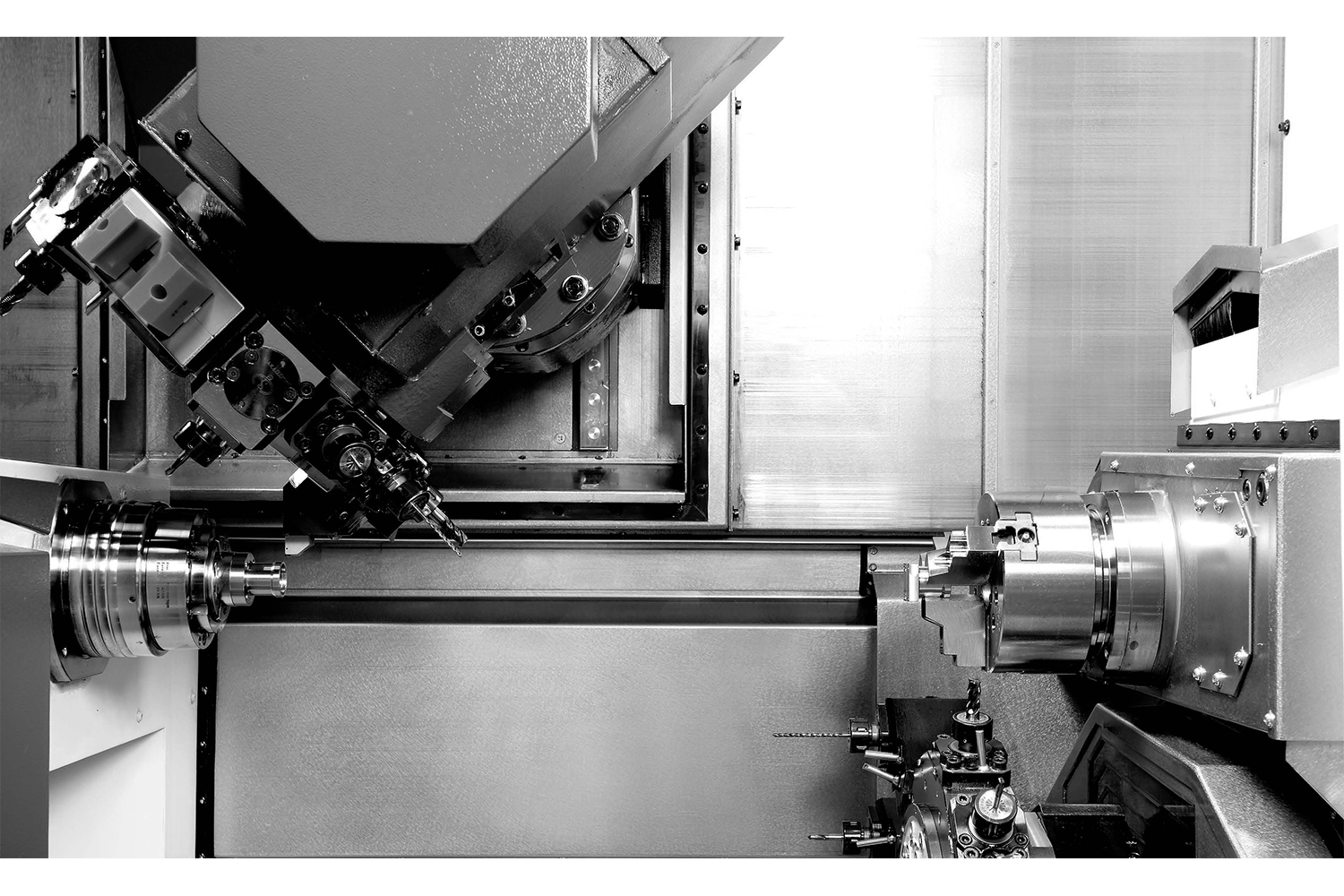

  • Swiveling Range 182 degree. B-axis with Milling-tools and Y-axis Offered as Standard Equipment
  • Opposing Twin-Spindle, Twin-Turret Construction
  • Up to 54 Tool Stations for Turning, 24 Tool Stations for Milling Tools
  • 24 Tools Number of Driven-Tool Stations
  • Y-axis on Upper and Lower Turret Upper 80 mm, Lower 65 mm
  • 6000 min-1 Driven-Tool Speed (Upper / Lower)
  • Double Performance – Milling-Tool motor 7.1/2.2 kW

Capacity

Max Turning Diameter
6.9 (175) in (mm)
Distance Between Spindles
max 35.9 (910) / min 7.9 (200) in (mm)
Max Turning Length
26.7 (678) in (mm)
Bar Capacity
1.7 (42) / 2 (51) in (mm)
Chuck size
6 (165) in (mm)

Axis Travel

Slide Travel (X1/X2)
13/5 (330/127.5) in (mm)
Slide Travel (Z1/Z2)
41/27 (1040/678) in (mm)
Slide Travel (Y1/Y2)
3.6 (±1.8) (90mm(±45mm)) / 2.6 (±1.3) (65mm(±32.5mm)) in (mm)
Slide Travel (B2-axis)
28 (710) in (mm)

Left and Right Spindle

Spindle Speed
5000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.0 ( 51 ) in (mm)

Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 ( 42) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
12
Number of Indexing Positions
24

Rotating Tool

Spindle Speed
Individual Rotation rpm
Spindle Speed Range
6000
Number of Rotation Tool Station
Stepless

Drive motor power

Main Spindle
12x3 HP
Sub Spindle (op.)
15 HP
Driven Tool Spindle
15 HP
Tailstock (op.)
9.5/3

General

Machine Weight
22046 (10000) lbs (kg)
