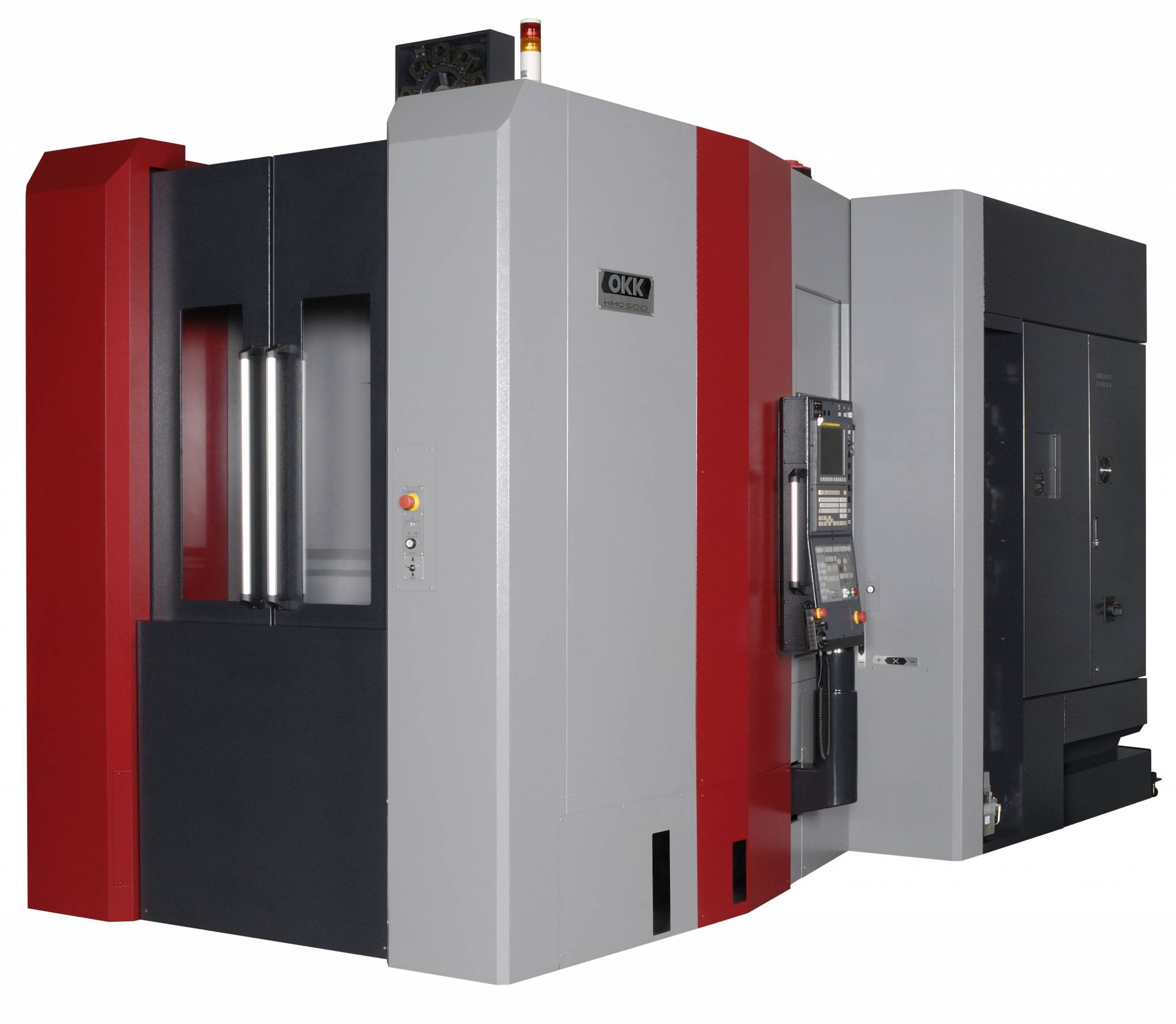

HMC500 Horizontal CNC Machine
*Availability of machines is based on region. Contact your local Methods office to learn more.
New concepts in high-speed machining offer drastic improvements in speed, rigidity and durability over competing machines. OKK‘s HM series offers the fastest and most powerful machines in their class, while providing easy access, maintenance and operation.
The OKK HMC500 comes fully loaded with features for incredibly fast cycle times. Achieving 20% faster rapid and acceleration than OKK’s phenomenally fast HM500S machine, the HMC500 is constructed with a lightweight column featuring a rigid stepped X axis rail design. This column enables a rapid feed rate of 63 meters per minute, 2480 inches per minute, with acceleration of 1G.
-
Faster cycle time capability by utilizing a faster ATC
-
Stable cutting for a wide variety of materials
-
Stepped X-Axis rails increases Z-Axis capabilities
-
Heavy load capacity linear roller guides
-
Core chilled pre-tensioned and double-anchored ball screws
-
High load capacity feed motors
Travel
| X-Axis Travel | 29.9" (760mm) |
|---|---|
| Y-Axis Travel | 29.9" (760mm) |
| Z-Axis Travel | 31.5" (800mm) |
| Table Top to Spindle Nose | 3.15" – 33.1" (80mm – 840mm) |
Table
| Table Size | 19.7" x 19.7" (500mm x 500mm) |
|---|---|
| Table Load Capacity | 1543 lbs (700 kg) |
| Max. Workpiece Size | ø 31.5" (800mm) |
| Table Change Time: Cut to Cut | 13.0 sec |
Feed Rate
| Rapid Traverse Rate (X/Y/Z) | 2480 in/min (63 m/min) |
|---|---|
| Cutting Feed (X/Y/Z) | 1575 in/min (40 m/min) |
Spindle
| Spindle Power | 50 HP |
|---|---|
| Spindle Speed | 15,000 rpm (Option 20,000 rpm) |
| Spindle Taper | CAT40 |
Tools
| Standard Number of Tools | 60 (OP: 116/172) |
|---|---|
| Maximum Tool Weight | 26 lbs (12 kg) |
| Maximum Tool Length | 21.7" (550 mm) |
| Maximum Tool Diameter | ø 3.7" (95 mm) / ø 6.7" (170 mm) without tool in adjacent pots |
| Tool Changing Time- Cut to Cut | 2.9 sec (Speed is changeable for heavy-weight tools) |
General
| Machine Weight | 23,148 lbs (10,500 kg) |
|---|---|
| Machine Control | FANUC F31i-B Plus |
