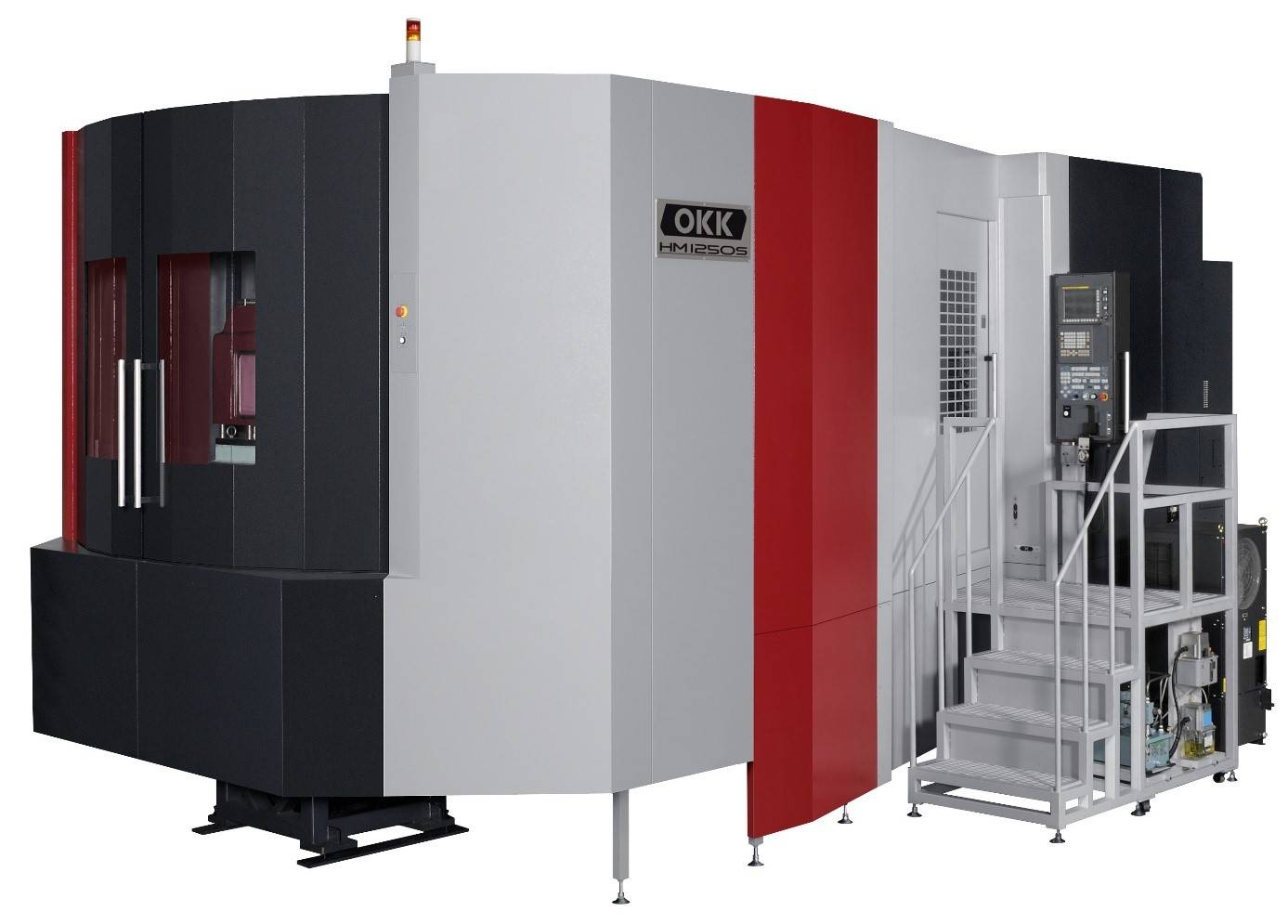

HM1250S
*Availability of machines is based on region. Contact your local Methods office to learn more.

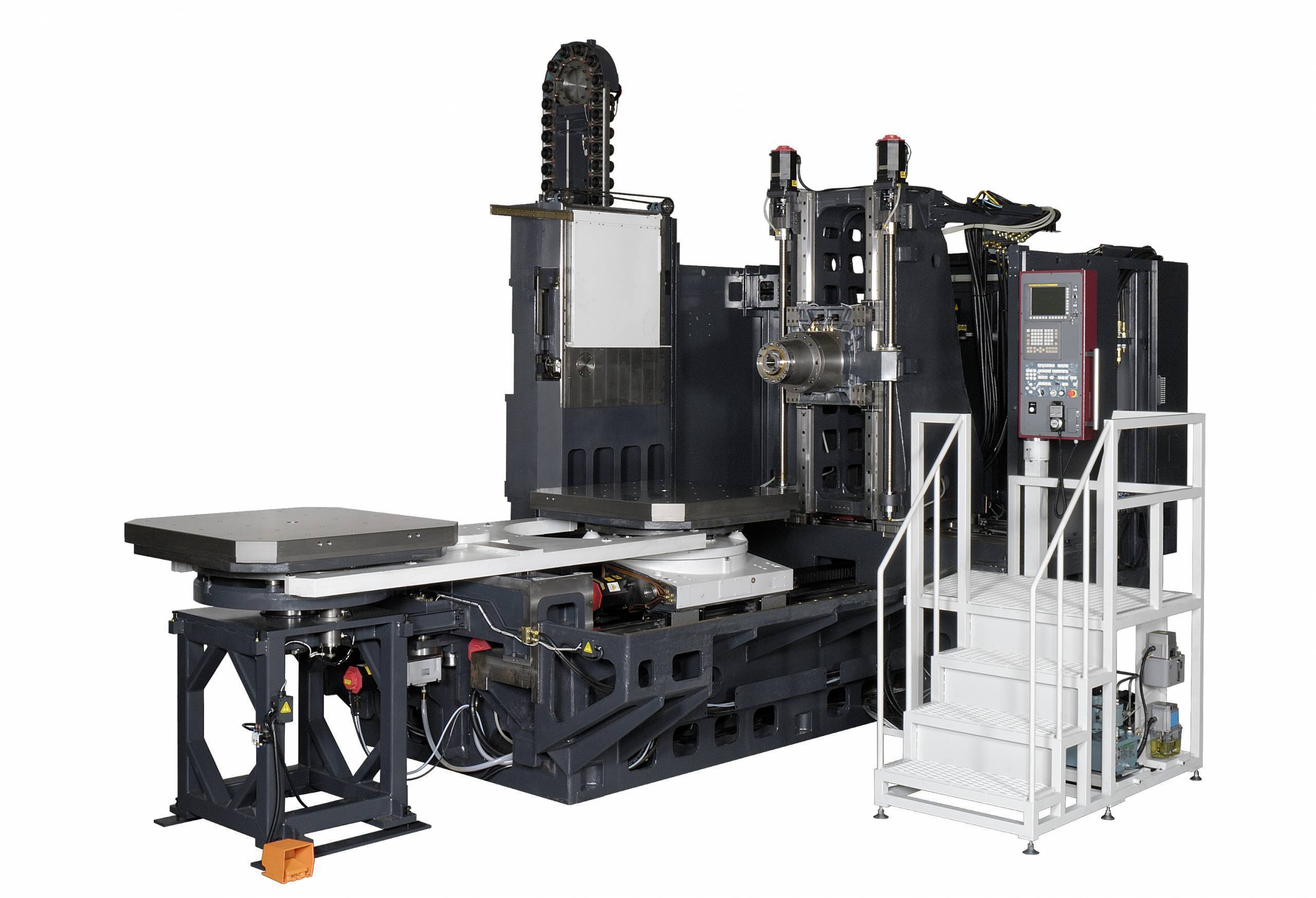

New concepts in high-speed machining offer drastic improvements in speed, rigidity and durability over competing machines. The OKK HM1250S offers heavy duty cutting performance by incorporating a rigid frame of think box-shaped structure to foundation the large linear roller guides designed for very heavy loads.
The fastest and most powerful machines in their class, our HM series offers easy access, maintenance, and operation. High-speed rotation APC and ATC by synchronization cam (patented by OKK) delivers smooth performance and production efficiency.
-
Direct-turn APC
-
Heavy load capacity linear roller guides
-
Core chilled pre-tensioned and double-anchored ball screws
-
High load capacity feed motors
-
Space saving design for economical use of floor space
Travel
| X-Axis Travel | 66.9" (1700mm) |
|---|---|
| Y-Axis Travel | 55.2" (1400mm) |
| Z-Axis Travel | 48.8" (1240mm) |
Table
| Table Top to Spindle Nose | 2.8" – 57.9" (70mm – 1470mm) |
|---|---|
| Table Size | 49.2" x 49.2" (1250mm x 1250mm) |
| Table Load Capacity | 6600 lbs (3000kg) |
| Max. Workpiece Size | ø 77.56" (1970mm) |
| Table Change Time: Cut to Cut | 35.0 sec |
Feed Rate
| Rapid Traverse Rate (X/Y/Z) | 1889 in/min (48 m/min) |
|---|---|
| Cutting Feed (X/Y/Z) | 787 in/min (20 m/min) |
Spindle
| Spindle Power | 60/35 HP |
|---|---|
| Spindle Speed | 8,000 rpm (Option 12,000 rpm) |
| Spindle Taper | CAT50 |
Tools
| Standard Number of Tools | 60 (OP: 116/176/236) |
|---|---|
| Maximum Tool Weight | 55 lbs (25 kg) |
| Maximum Tool Length | 23.6" (600 mm) |
| Maximum Tool Diameter | ø 4.5" (115 mm) / ø 10.6" (270 mm) without tool in adjacent pots |
| Tool Changing Time- Cut to Cut | 6.2 sec (Speed is changeable for heavy-weight tools) |
General
| Machine Weight | 72,000 lbs (32,500 kg) |
|---|---|
| Machine Control | FANUC F31i-B5 Plus |
