AS-200

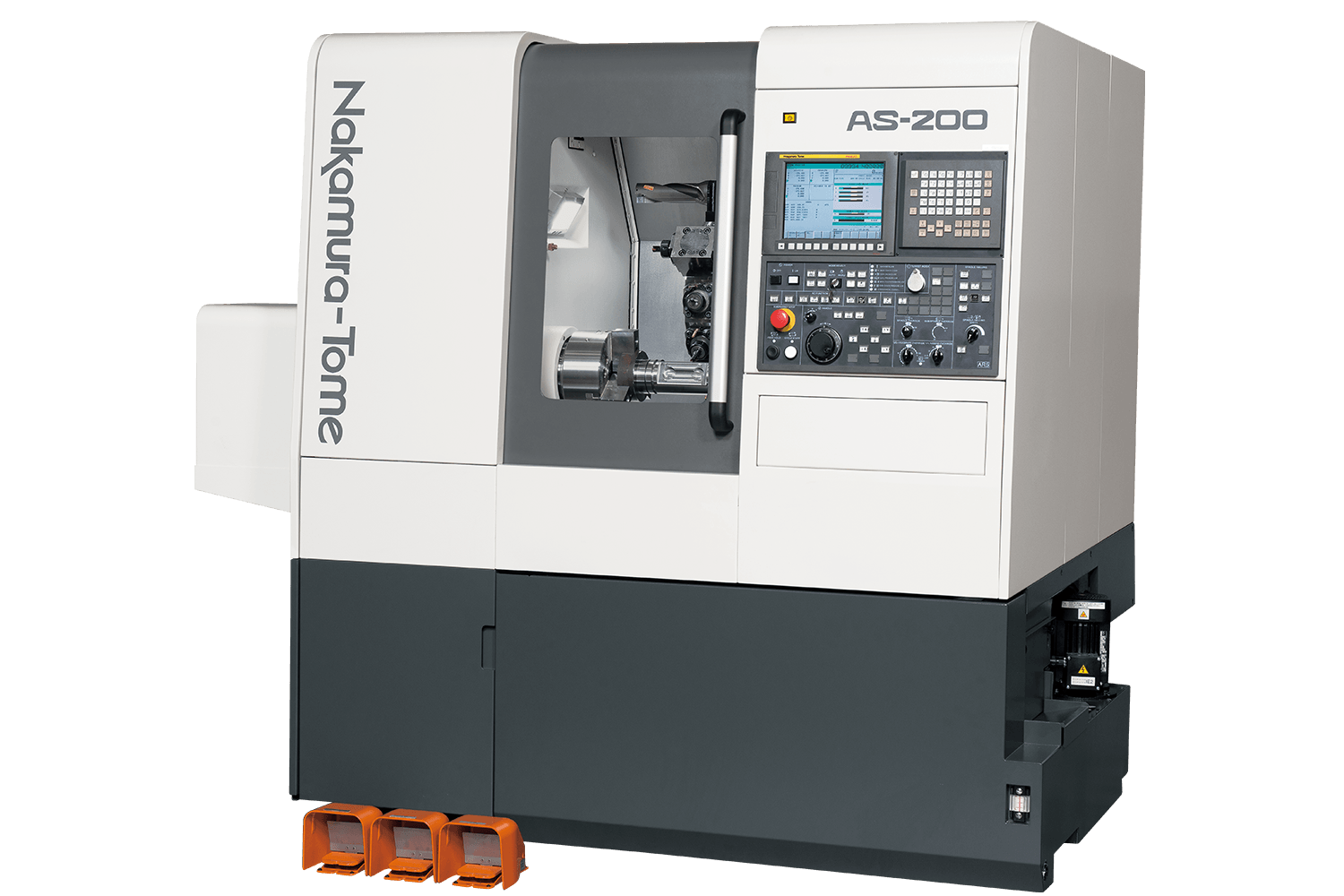

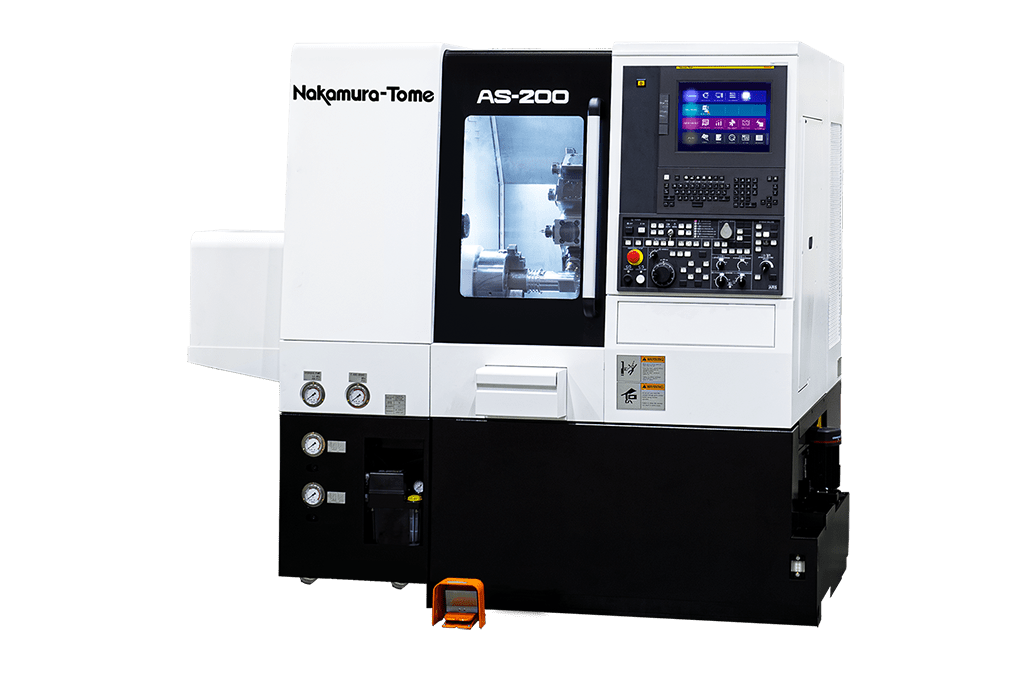

The AS-200 from NAKAMURA-TOME features a powerful milling drive, high-speed and high-accuracy C-Axis, and 3.22 in stroke Y-axis ensures production of cleanly finished parts.
The NAKAMURA-TOME AS-200 elimination of secondary operations, such as deburring, milling, drilling, and re-positioning of fixtures.
-
Space Saving Combined Machine Tool with Y-axis & Milling Function
-
Stroke: 3.22 in
-
With Milling Function: 7.5/5 HP, Spindle Speed: 6000 rpm
-
Strong Spindle Motor: 20/15 HP
-
High Speed Index – X-axis: 24 m/min, Z-axis: 36 m/min, C-axis: 600 min-1
-
Turret: Max Dodecagonal Drum Turret (Max. 24 Station)
-
Number of Milling Tools (dodecagonal drum turret): 12
| Swing Over Bed | 15.8 in. (400 mm) |
|---|---|
| Max Workpiece Swing Diameter | 12.6 in. (320 mm) |
| Max Turning Diameter | 13.4 in. (340 mm) |
| Max Turning Length | 11.8 in. (300 mm) |
| Bar Capacity | 2.6 in. (65 mm) |
| Chuck size | 8 in. (203.2 mm) |
Axis Travel
| Slide travel (X) | 9 in. (227.5 mm) |
|---|---|
| Slide travel (Z) | 12.6 in. (320 mm) |
| Slide travel (Y) | ±1.6 in. (41 mm) |
| Rapid feed (X) | 945 in. (24 m/min) |
| Rapid feed (Z) | 1418 in./min (36 m/min) |
| Rapid feed (Y) | 236 in. /min (6 m/min) |
Spindle
| Spindle Speed | 0-4500 rpm |
|---|---|
| Spindle Speed Range | Stepless |
| Spindle Nose | A2-6 |
| Hole Through Draw Tube | 2.6 (66) in (mm) |
C-Axis
| Least Input Increment | 1E-3 degree |
|---|
Turret
| Number of Tool Stations | 12 |
|---|---|
| Number of Indexing Positions | 24 |
Milling Tools
| Spindle Speed | 6000 rpm |
|---|---|
| Number of Milling-Tool Stations | 12 |
Rotating Tool
| Rotary System | Individual Rotation |
|---|---|
| Spindle Speed | 6000 rpm |
| Spindle Speed Range | Stepless |
| Number of Rotation Tool Station | 12 |
Drive motor power
| Main Spindle | 20 HP |
|---|---|
| Driven Tool Spindle | 7.5 HP |
Tailstock (op.)
| Quill Diameter | 2.8 (70) in (mm) |
|---|---|
| Quill Taper | MT-4 |
| Quill Stroke | 3.2 (80) in (mm) |
| Travel | 7.9 (200) in (mm) |
General
| Machine Weight | 7055 (3200) lbs (kg) |
|---|
-
Royal 5C Collet Chuck
-
WTO Live Tooling
-
Edge Rebel V-65 Servo Barfeeder
