YBM 1530V

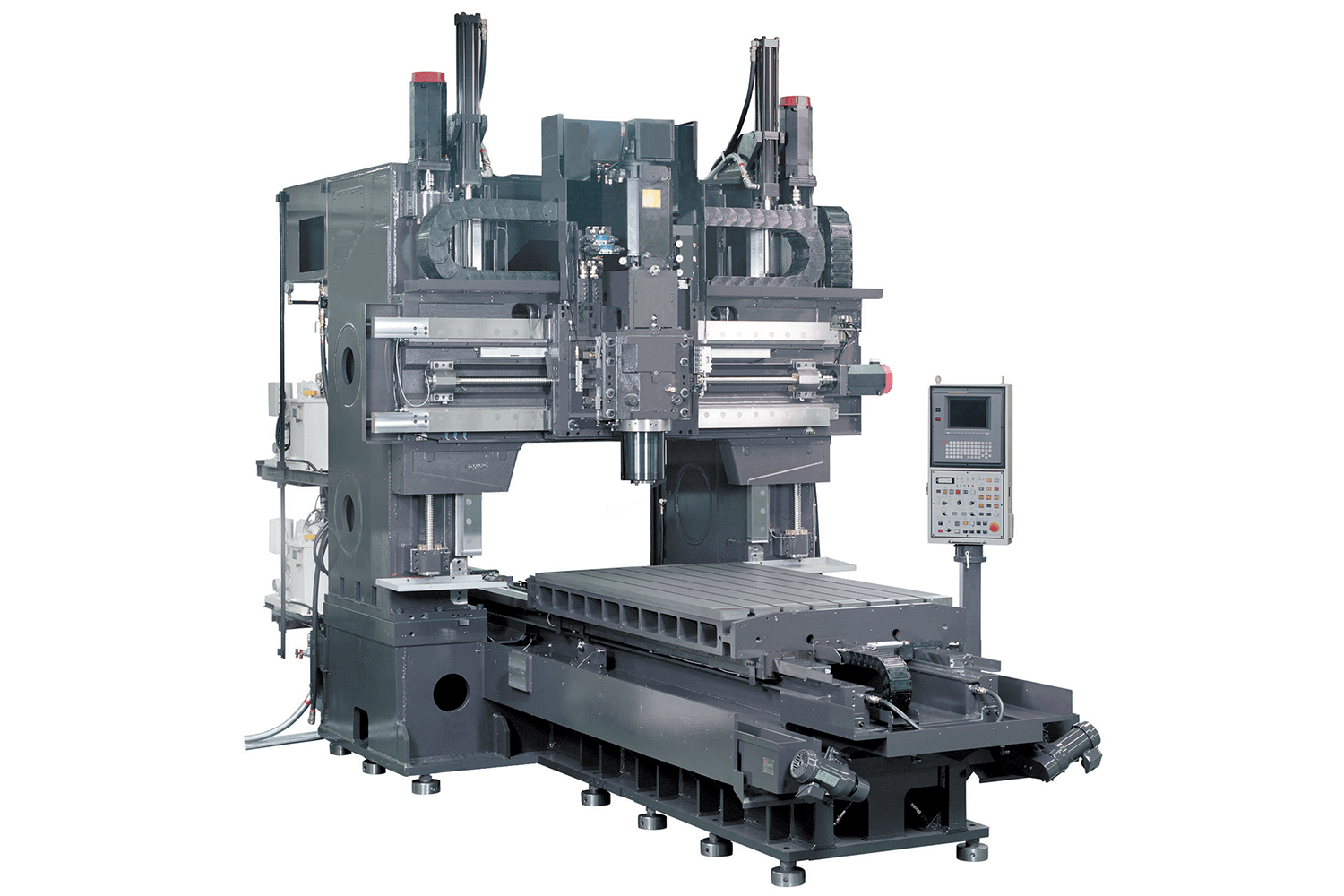

The YASDA CNC Jig Borer YBM 1530V is a highly rigid, bridge-type machining center, developed for high precision machining, high speed machining of medium to large-sized parts, and high accuracy contour-milling for die and mold applications.
-

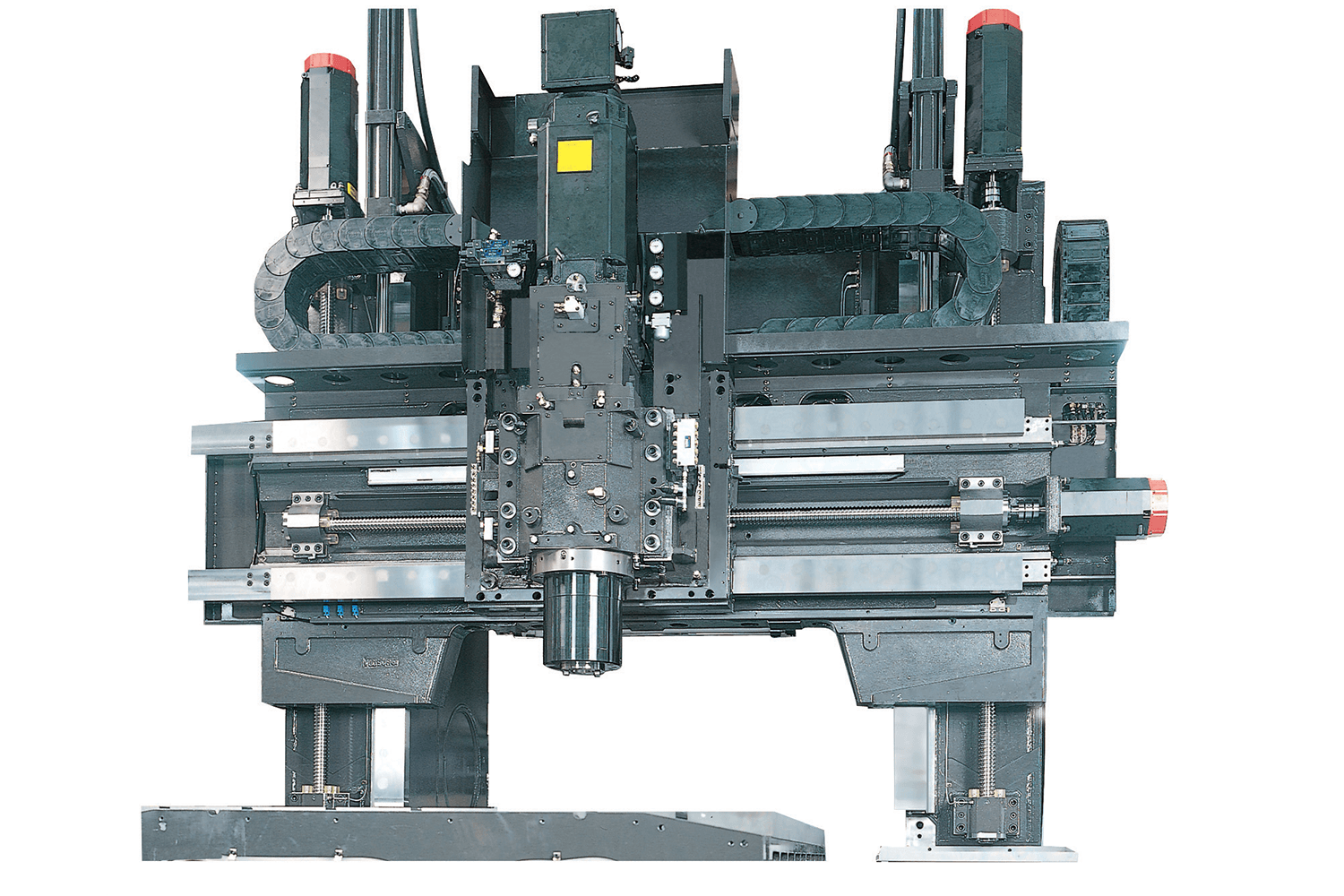

Z-axis Movement with Cross Rail
-

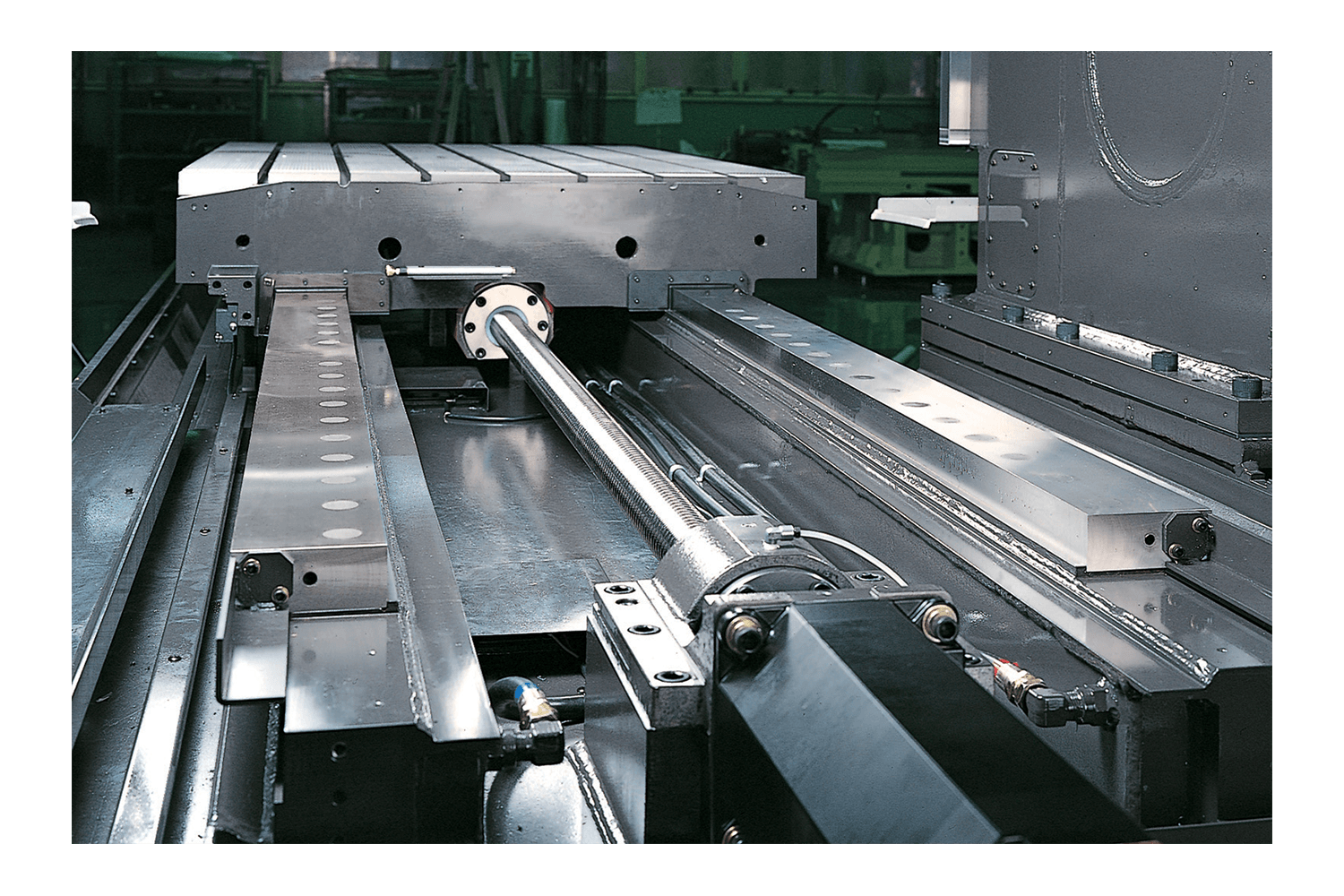

Exclusive Hybrid Slideway
-

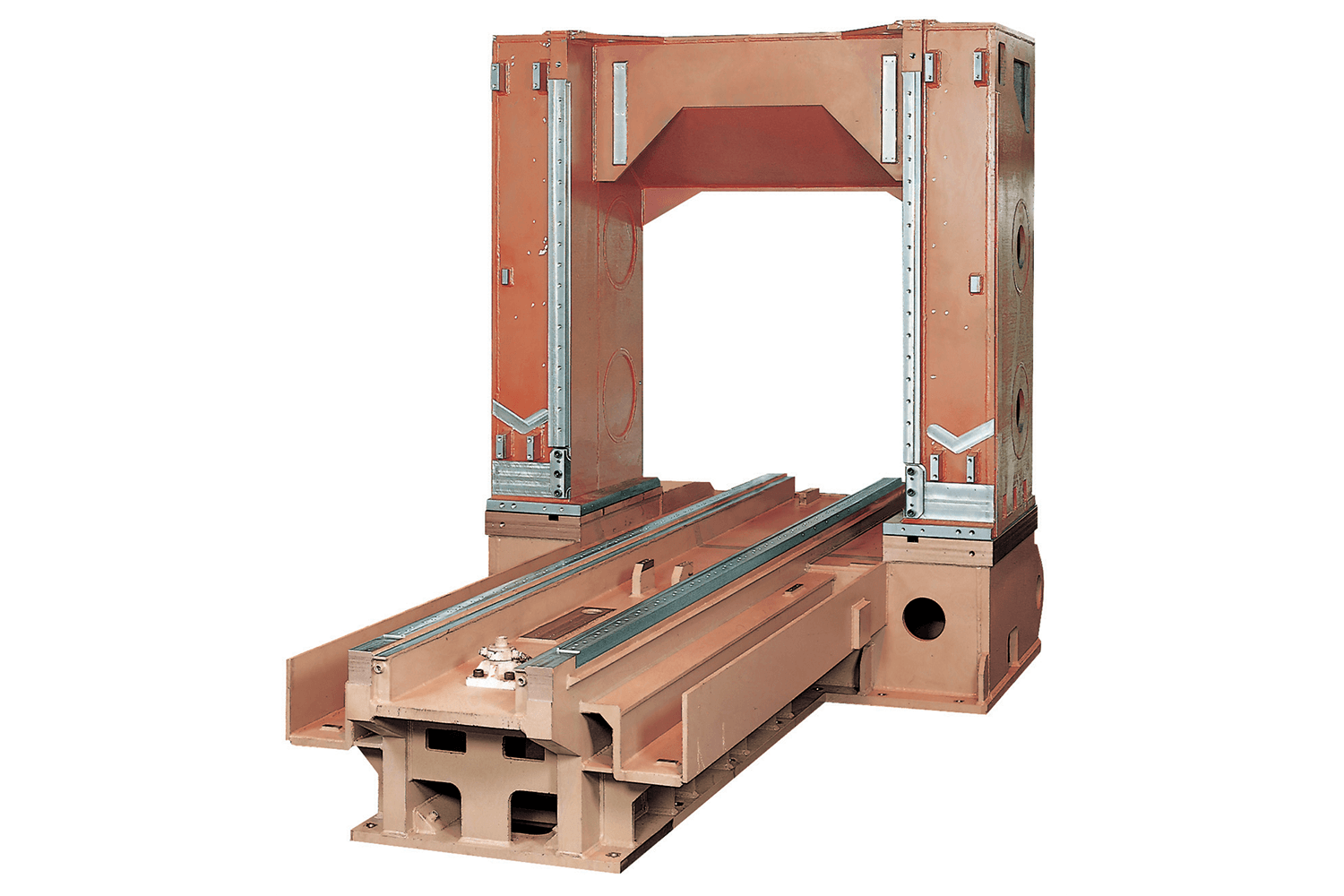

Solid Bridge Construction
-
Direct Drive System
-
High Precision Rotation
-
Thermal Distortion Stabilizing System
-
Improved Heavy Cutting Capability
-
Complex 3-dimensional Contouring and Various Machining can be Performed Precisely and Powerfully
Travel
| X-Axis Travel | 118.1 (3000) in (mm) |
|---|---|
| Y-Axis Travel | 59 (1500) in (mm) |
| Z-Axis Travel | 21.6 (550) in (mm) |
| Distance from Table Surface to Spindle | 9.8-31.4 (250-800) in (mm) |
Feed Rate
| Feed Rate | 0.04-394 (1-10000) in/min (mm/min) |
|---|
Table
| Table Working Surface | 118.1×47.2 (3000 x 1200) in (mm) |
|---|---|
| Table Loading Capacity | 8819 (4000) lbs (kg) |
Spindle
| Spindle Type | SA50-10000-22 |
|---|---|
| Spindle Speed Range | 50-10000 rpm (opt) |
| Spindle Taper | N.T.No.50 |
Tooling
| Number of Tools | 32 std (opt) |
|---|---|
| Maximum Tool Weight | 44 (20) lbs (kg) |
| Maximum Tool Length | 13.8 (350) in (mm) |
| Maximum Tool Diameter | ø 9.1 (240) in (mm) |
General
| Machine Weight | 63934 (29000) lbs (kg) |
|---|---|
| Machine Control | Fanuc 31iB5 Plus |
