the machinery inside the OKK HM-X6000 horizontal machining center

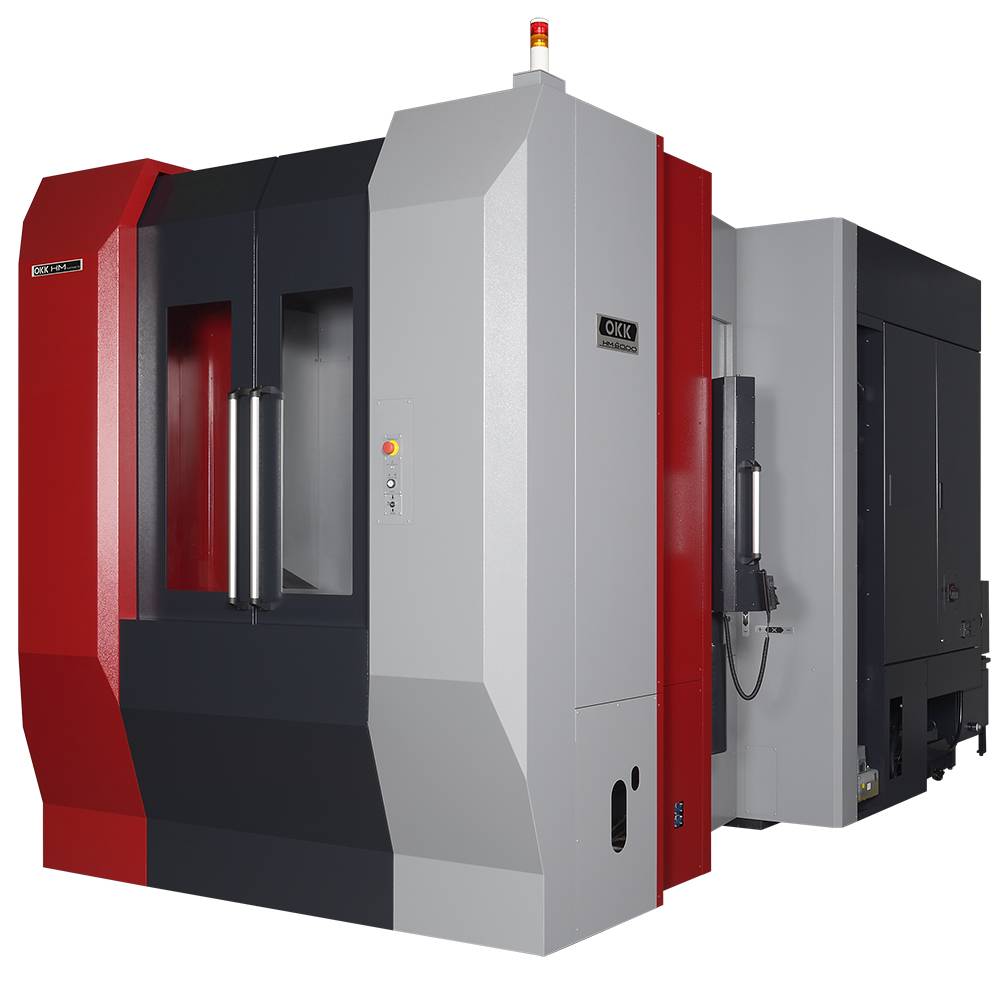

HM6000S 1 OKK HM-X6000 - Internal Machinery | Methods Machine Tools

OKK
HM6000S

*Availability of machines is based on region. Contact your local Methods office to learn more.

As with all OKK machines we paid special attention to the rigidity of the OKK HM6000S cast body, built solid and featuring our massive linear roller guides and large-diameter ball screws for the feed system, allowing the HM Series to easily cut exotic materials.

All OKK horizontal machining centers feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.

The HM6000S is a High Power 50 Taper HMC with Dual Anchored Core Chilled Ball Screws and Linear Cross Roller Guides. These machines are used successfully by many of our premier Aerospace customers who have put them through some of the most extensive tests and achieved more than impressive results with Titanium, a material that demands Box Ways from our competitors.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Direct-turn APC
  • Heavy load capacity linear roller guides
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space

Technical Data

Travel

X-Axis Travel
31.5" (800mm)
Y-Axis Travel
29.5" (750mm)
Z-Axis Travel
34.7" (880mm)
Table Top to Spindle Center
2.0”~31.5” (50mm - 800mm)

Table

Table Size
ø 24.8" (630mm)
Table Load Capacity
1,540 lbs (700kg)
Max. Workpiece Size
ø 31.5" (800mm)
Table Change Time: Cut to Cut
10.5 sec

Feed Rate

Rapid Traverse Rate X/Z
2953 in/min (75 m/min)
Rapid Traverse Rate Y
2362 in/min (60 m/min)
Cutting Feed (X/Y/Z)
1575 in/min (40 m/min)

Spindle

Spindle Power
60/35 HP
Spindle Speed
12,000 rpm
Spindle Taper
CAT50

Tools

Standard Number of Tools
60 (OP: 116/176/236)
Maximum Tool Weight
66 lbs (30 kg)
Maximum Tool Length
23.6" (600 mm)
Maximum Tool Diameter
ø 4.5" (115 mm) / ø 11.8" (300 mm) without tool in adjacent pots
Tool Changing Time- Cut to Cut
4.2 sec (Speed is changeable for heavy-weight tools)

General

Machine Weight
35,273 lbs (16,000 kg)
Machine Control
F31i-B5
